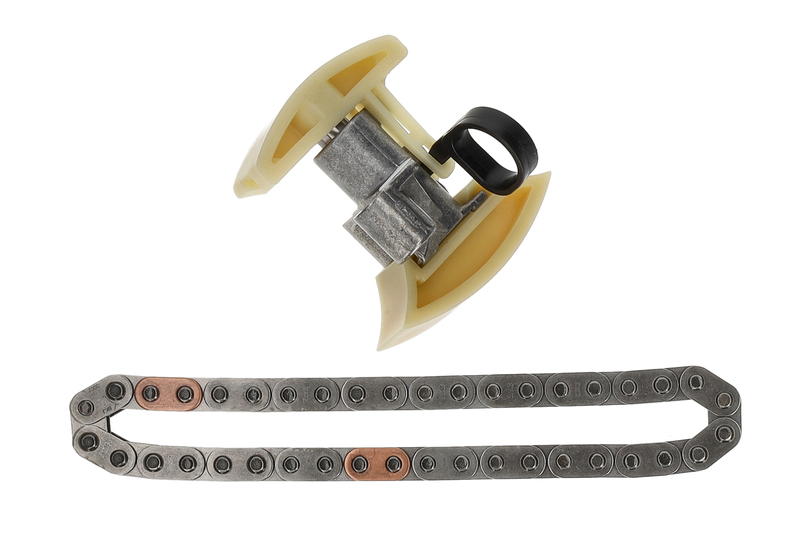

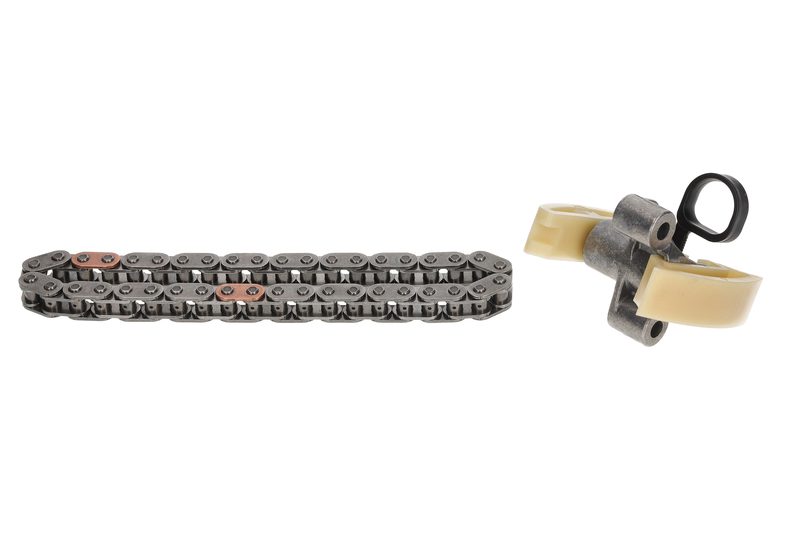

Steuerkettensatz
73927Set
| Qualität | iwis Original Erstausrüsterqualität, Made in Germany |
| Ergänzungsartikel/Ergänzende Info: | mit Kettenspanner,Zahnräder auf Verschleiß prüfen und ggf. erneuern |
| Anzahl Kettenglieder: | 40 |
| Garantie: | 5 Jahre Garantie oder bis 100.000km |
| Kettenausführung: | Simplex,Kette geschlossen |
| VPE | 1 |
| Hersteller | Model | Motorcode | Baujahr von | Baujahr bis | K-Typ | KW |
|---|---|---|---|---|---|---|
| VOLVO | C30 (533) | D 4164 T | 10/2006 | 12/2012 | 19813 | 0080 |
| VOLVO | S80 II (124) | D 4164 T | 01/2010 | 12/2011 | 33373 | 0080 |
| VOLVO | V50 (545) | D 4164 T | 01/2005 | 12/2011 | 18604 | 0081 |
| VOLVO | V70 III (135) | D 4164 T | 07/2009 | 12/2011 | 32910 | 0080 |
| VOLVO | S40 II (544) | D 4164 T | 01/2005 | 12/2012 | 18601 | 0081 |
| CITROEN | BERLINGO Kasten/Großraumlimousine (B9) | 9HT (DV6BTED4), 9HT (DV6BUTED4) | 04/2008 | 12/2018 | 24519 | 0055 |
| CITROEN | BERLINGO Kasten/Großraumlimousine (B9) | 9HX (DV6ATED4), 9HS (DV6TED4BU) | 04/2008 | 12/2018 | 24520 | 0066 |
| CITROEN | BERLINGO Kasten/Großraumlimousine (B9) | 9HZ (DV6TED4) | 04/2008 | 12/2018 | 24521 | 0080 |
| CITROEN | C5 II Kasten/Kombi (RE_) | 09/2004 | 01/2008 | 132719 | 0080 | |
| CITROEN | DISPATCH II Pritsche/Fahrgestell | 06/2007 | 03/2016 | 135593 | 0066 | |
| CITROEN | C2 (JM_) | 9HZ (DV6TED4) | 09/2005 | 12/2009 | 26625 | 0080 |
| CITROEN | C3 I (FC_, FN_) | 8HY (DV4TED4) | 02/2002 | 06/2008 | 16336 | 0066 |
| CITROEN | C3 I (FC_, FN_) | 9HX (DV6ATED4) | 10/2005 | 12/2009 | 19340 | 0066 |
| CITROEN | C3 I (FC_, FN_) | 9HZ (DV6TED4) | 09/2005 | 12/2009 | 19017 | 0080 |
| CITROEN | BERLINGO / BERLINGO FIRST Großraumlimousine (MF_, GJK_, GFK_ | DV6B, 9HW (DV6BTED4) | 07/2005 | 12/2011 | 19026 | 0055 |
| CITROEN | C3 II (SC_) | 9HX (DV6ATED4) | 11/2009 | 09/2016 | 33394 | 0066 |
| CITROEN | BERLINGO / BERLINGO FIRST Großraumlimousine (MF_, GJK_, GFK_ | 9HX (DV6ATED4) | 07/2005 | 05/2008 | 19027 | 0066 |
| CITROEN | C3 PICASSO (SH_) | 9HX (DV6ATED4) | 02/2009 | 03/2015 | 31742 | 0066 |
| CITROEN | C3 PICASSO (SH_) | 9HZ (DV6TED4) | 02/2009 | 12/2010 | 28200 | 0080 |
| CITROEN | C4 I (LC_) | 9HX (DV6ATED4) | 11/2004 | 07/2011 | 18336 | 0066 |
| CITROEN | C4 I (LC_) | 9HY (DV6TED4), 9HZ (DV6TED4) | 11/2004 | 07/2011 | 18337 | 0080 |
| CITROEN | C4 I Stufenheck | 9HZ (DV6TED4), 9HY (DV6TED4) | 07/2006 | 07/2011 | 32802 | 0080 |
| CITROEN | C4 PICASSO I Großraumlimousine (UD_) | 9HY (DV6TED4), 9HZ (DV6TED4) | 02/2007 | 08/2013 | 19749 | 0080 |
| CITROEN | C4 GRAND PICASSO I (UA_) | 9HY (DV6TED4), 9HZ (DV6TED4) | 10/2006 | 06/2011 | 22483 | 0080 |
| CITROEN | C5 II (RC_) | 9HZ (DV6TED4), 9HY (DV6TED4) | 09/2004 | 01/2008 | 18456 | 0080 |
| CITROEN | C5 II Break (RE_) | 9HZ (DV6TED4), 9HY (DV6TED4) | 09/2004 | 01/2008 | 18462 | 0080 |
| CITROEN | C5 III (RD_) | 9HZ (DV6TED4) | 02/2008 | 10/2010 | 24501 | 0080 |
| CITROEN | BERLINGO / BERLINGO FIRST Kasten/Großraumlimousine (M_) | DV6B, 9HW (DV6BTED4) | 07/2005 | 12/2011 | 20025 | 0055 |
| CITROEN | BERLINGO / BERLINGO FIRST Kasten/Großraumlimousine (M_) | 9HX (DV6ATED4) | 07/2005 | 12/2011 | 26560 | 0066 |
| CITROEN | C5 III Break (RW_) | 9HZ (DV6TED4) | 02/2008 | 10/2010 | 24508 | 0080 |
| CITROEN | DISPATCH II (VF7) | 9HU (DV6UTED4) | 01/2007 | 03/2016 | 20036 | 0066 |
| CITROEN | DISPATCH II Kasten | 9HU (DV6UTED4) | 01/2007 | 03/2016 | 20040 | 0066 |
| CITROEN | BERLINGO MULTISPACE (B9) | 9HT (DV6BTED4) | 04/2008 | 12/2018 | 24514 | 0055 |
| CITROEN | BERLINGO MULTISPACE (B9) | 9HX (DV6ATED4) | 04/2008 | 12/2018 | 24515 | 0066 |
| CITROEN | BERLINGO MULTISPACE (B9) | 9HZ (DV6TED4) | 04/2008 | 12/2018 | 24516 | 0080 |
| CITROEN | XSARA PICASSO (N68) | 9HX (DV6ATED4) | 09/2005 | 12/2011 | 19010 | 0066 |
| CITROEN | XSARA PICASSO (N68) | 9HY (DV6TED4), 9HZ (DV6TED4) | 05/2004 | 12/2011 | 17961 | 0080 |
| FORD | FOCUS II Kasten/Kombi | 07/2004 | 07/2011 | 134482 | 0080 | |
| FORD | FOCUS II Kasten/Kombi | 09/2005 | 07/2011 | 134487 | 0066 | |
| FORD | FIESTA V (JH_, JD_) | HHJB, HHJA | 11/2004 | 06/2008 | 18329 | 0066 |
| FORD | FIESTA V Van | HHJA, HHJB | 04/2007 | 09/2009 | 115004 | 0066 |
| FORD | FIESTA VI (CB1, CCN) | HHJF, UBJA | 06/2008 | 12/2012 | 31520 | 0055 |
| FORD | FIESTA VI (CB1, CCN) | HHJC, HHJD , HHJE | 06/2008 | 12/2012 | 28237 | 0066 |
| FORD | FIESTA VI Van | HHJE, HHJD , HHJC | 01/2009 | 04/2017 | 33337 | 0066 |
| FORD | C-MAX (DM2) | HHDB, HHDA , GPDA | 02/2007 | 09/2010 | 22528 | 0066 |
| FORD | C-MAX (DM2) | MTDA, G8DC | 02/2007 | 09/2010 | 11895 | 0074 |
| FORD | C-MAX (DM2) | G8DA, G8DB , G8DD | 02/2007 | 09/2010 | 22529 | 0080 |
| FORD | FOCUS C-MAX (DM2) | HHDA, HHDB | 02/2005 | 03/2007 | 18501 | 0066 |
| FORD | FOCUS C-MAX (DM2) | G8DA, G8DB | 10/2003 | 03/2007 | 17631 | 0080 |
| FORD | FOCUS II (DA_, HCP, DP) | HHDB, HHDA , GPDC , GPDA , GPDB | 01/2005 | 09/2012 | 18934 | 0066 |
| FORD | FOCUS II (DA_, HCP, DP) | G8DC, MTDA | 07/2004 | 09/2012 | 10323 | 0074 |
| FORD | FOCUS II (DA_, HCP, DP) | G8DB, G8DA , G8DD , G8DF , G8DE | 07/2004 | 09/2012 | 18378 | 0080 |
| FORD | FOCUS II Stufenheck (DB_, FCH, DH) | HHDB, HHDA | 04/2005 | 09/2012 | 18956 | 0066 |
| FORD | FOCUS II Stufenheck (DB_, FCH, DH) | MTDA, G8DC | 04/2005 | 09/2012 | 18275 | 0074 |
| FORD | FOCUS II Stufenheck (DB_, FCH, DH) | G8DB, G8DA , G8DD , G8DF , G8DE | 04/2005 | 09/2012 | 18957 | 0080 |
| FORD | FOCUS II Station Wagon (DA_, FFS, DS) | HHDA, HHDB , GPDA , GPDC | 07/2004 | 09/2012 | 18519 | 0066 |
| FORD | FOCUS II Station Wagon (DA_, FFS, DS) | MTDA, G8DC | 07/2004 | 09/2012 | 10304 | 0074 |
| FORD | FOCUS II Station Wagon (DA_, FFS, DS) | G8DB, G8DA , G8DD , G8DE , G8DF | 07/2004 | 09/2012 | 18517 | 0080 |
| FORD | FUSION (JU_) | HHJB, HHJA | 11/2004 | 12/2012 | 18330 | 0066 |
| MAZDA | 3 (BK) | Y601 | 06/2004 | 06/2009 | 17876 | 0080 |
| MAZDA | 3 Stufenheck (BK) | Y601 | 06/2004 | 06/2009 | 17875 | 0080 |
| MAZDA | 3 (BL) | Y601, Y642 | 12/2008 | 05/2013 | 31077 | 0080 |
| MAZDA | 3 (BL) | Y655, Y650 | 09/2010 | 05/2013 | 6612 | 0085 |
| MAZDA | 3 Stufenheck (BL) | Y642 | 12/2008 | 05/2013 | 58605 | 0080 |
| MAZDA | 3 Stufenheck (BL) | Y650, Y655 | 09/2010 | 05/2013 | 6538 | 0085 |
| MINI | MINI CLUBMAN (R55) | 9HZ (DV6TED4) | 10/2007 | 02/2010 | 23447 | 0080 |
| MINI | MINI (R56) | N47 C16 A | 07/2010 | 11/2013 | 3040 | 0066 |
| MINI | MINI (R56) | 9HZ (DV6TED4), W16 D16 | 11/2006 | 09/2010 | 22486 | 0080 |
| PEUGEOT | 5008 (0U_, 0E_) | 9HZ (DV6TED4) | 09/2009 | 03/2017 | 31737 | 0080 |
| PEUGEOT | EXPERT TEPEE (VF3X_) | 9HU (DV6UTED4) | 01/2007 | 03/2016 | 20050 | 0066 |
| PEUGEOT | EXPERT Kasten (VF3A_, VF3U_, VF3X_) | 9HU (DV6UTED4) | 01/2007 | / | 20058 | 0066 |
| PEUGEOT | RANCH Großraumlimousine (5_, G_) | 9HX (DV6ATED4) | 08/2005 | 12/2015 | 19518 | 0066 |
| PEUGEOT | PARTNER TEPEE | 9HX (DV6ATED4), 9HV (DV6TED4) | 04/2008 | / | 24532 | 0066 |
| PEUGEOT | PARTNER TEPEE | 9HZ (DV6TED4) | 04/2008 | / | 24533 | 0080 |
| PEUGEOT | PARTNER Kasten/Großraumlimousine | 9HW (DV6BTED4), 9HT (DV6BTED4) | 04/2008 | / | 24536 | 0055 |
| PEUGEOT | PARTNER Kasten/Großraumlimousine | 9HX (DV6ATED4), 9HS (DV6TED4BU) | 04/2008 | / | 24537 | 0066 |
| PEUGEOT | PARTNER Kasten/Großraumlimousine | 9HZ (DV6TED4) | 04/2008 | / | 24538 | 0080 |
| PEUGEOT | PARTNER Pritsche/Fahrgestell | 01/2009 | / | 12149 | 0066 | |
| PEUGEOT | RANCH Kasten/Großraumlimousine (5_, G_) | 08/2005 | 12/2015 | 19524 | 0066 | |
| PEUGEOT | EXPERT Pritsche/Fahrgestell | 01/2007 | / | 20061 | 0066 | |
| PEUGEOT | 206 Schrägheck (2A/C) | 9HZ (DV6TED4), 9HY (DV6TED4) | 05/2004 | 02/2007 | 18106 | 0080 |
| PEUGEOT | PARTNER Kasten/Großraumlimousine | 09/2009 | / | 30023 | 0066 | |
| PEUGEOT | 207 Kasten/Schrägheck (WA_, WC_) | 04/2007 | 10/2012 | 33231 | 0066 | |
| PEUGEOT | PARTNER TEPEE | 06/2008 | 12/2018 | 113673 | 0055 | |
| PEUGEOT | 206 SW (2E/K) | 9HZ (DV6TED4) | 05/2004 | / | 18107 | 0080 |
| PEUGEOT | 206 CC (2D) | 9HZ (DV6TED4) | 04/2005 | 02/2007 | 18477 | 0080 |
| PEUGEOT | 308 CC (4B_) | 02/2009 | 05/2012 | 130900 | 0082 | |
| PEUGEOT | 207 SW Kasten/Kombi (WK_) | 08/2007 | 12/2012 | 132588 | 0080 | |
| PEUGEOT | 307 SW Kasten/Kombi (3E_, 3H_) | 04/2006 | 10/2008 | 132616 | 0066 | |
| PEUGEOT | PARTNER Pritsche/Fahrgestell (5_, G_) | 02/2006 | 07/2008 | 135635 | 0055 | |
| PEUGEOT | 207/207+ (WA_, WC_) | 9HX (DV6ATED4), 9HV (DV6TED4) | 02/2006 | 10/2013 | 19352 | 0066 |
| PEUGEOT | 207/207+ (WA_, WC_) | 9HZ (DV6TED4), 9HY (DV6TED4) | 02/2006 | 10/2013 | 19353 | 0080 |
| PEUGEOT | 3008 Van (0U_) | 06/2009 | 08/2016 | 142640 | 0080 | |
| PEUGEOT | 207 CC (WD_) | 9HZ (DV6TED4) | 02/2007 | 01/2015 | 20030 | 0080 |
| PEUGEOT | 207 SW (WK_) | 9HZ (DV6TED4) | 06/2007 | 12/2012 | 23389 | 0080 |
| PEUGEOT | 307 (3A/C) | 9HX (DV6ATED4), 9HV (DV6ATED4) , 9HV (DV6TED4) | 04/2005 | 03/2009 | 19341 | 0066 |
| PEUGEOT | 307 (3A/C) | 9HZ (DV6TED4), 9HY (DV6TED4) | 02/2004 | 03/2009 | 17989 | 0080 |
| PEUGEOT | 307 Estate (3E) | 9HV (DV6ATED4) | 04/2005 | 04/2008 | 19405 | 0066 |
| PEUGEOT | 307 Estate (3E) | 9HZ (DV6TED4), 9HY (DV6TED4) | 02/2004 | 04/2008 | 17993 | 0080 |
| PEUGEOT | 307 SW (3H) | 9HX (DV6ATED4), 9HV (DV6ATED4) | 04/2005 | 04/2008 | 23722 | 0066 |
| PEUGEOT | 307 SW (3H) | 9HZ (DV6TED4), 9HY (DV6TED4) | 11/2003 | 12/2007 | 17992 | 0080 |
| PEUGEOT | 308 I (4A_, 4C_) | 9HX (DV6ATED4), 9HV (DV6TED4) | 09/2007 | 10/2014 | 23382 | 0066 |
| PEUGEOT | 308 I (4A_, 4C_) | 9HZ (DV6TED4) | 09/2007 | 10/2014 | 23383 | 0080 |
| PEUGEOT | 308 SW I (4E_, 4H_) | 9HX (DV6ATED4), 9HV (DV6ATED4) | 09/2007 | 10/2014 | 26614 | 0066 |
| PEUGEOT | 308 SW I (4E_, 4H_) | 9HZ (DV6TED4) | 09/2007 | 10/2014 | 26615 | 0080 |
| PEUGEOT | 407 (6D_) | 9HZ (DV6TED4) | 05/2004 | 12/2010 | 17986 | 0080 |
| PEUGEOT | 407 SW (6E_, 6D_) | 9HZ (DV6TED4) | 05/2004 | 12/2010 | 18015 | 0080 |
| PEUGEOT | 1007 (KM_) | 9HZ (DV6TED4) | 06/2007 | / | 23230 | 0080 |
| PEUGEOT | 3008 I Großraumlimousine (0U_) | 9HZ (DV6TED4) | 06/2009 | 08/2016 | 30823 | 0080 |
| Hersteller | Vergleichsnummer |
|---|---|
| CITRO | 0816.J0 |
| PEUGE | 0816.J0 |
| CITRO | 0816.J1 |
| PEUGE | 0816.J1 |
| FORD | 1 448 169 |
| MINI | 1131 7 805 967 |
| VOLVO | 31 259 232 |
| MINI | 7 805 967 |
| FORD | 7M5Q6L266AA |
| VOLVO | 86 53 755 |
| RENAU | 9648 507 780 |
| MAZDA | Y601-12-201 |
| Bezeichnung | Artikelnummer | OE-Vergleichsnummer | Menge |
|---|---|---|---|
| Steuerkette | 60416 | 1 | |
| Spanner, Steuerkette | 60447 | 1 |
