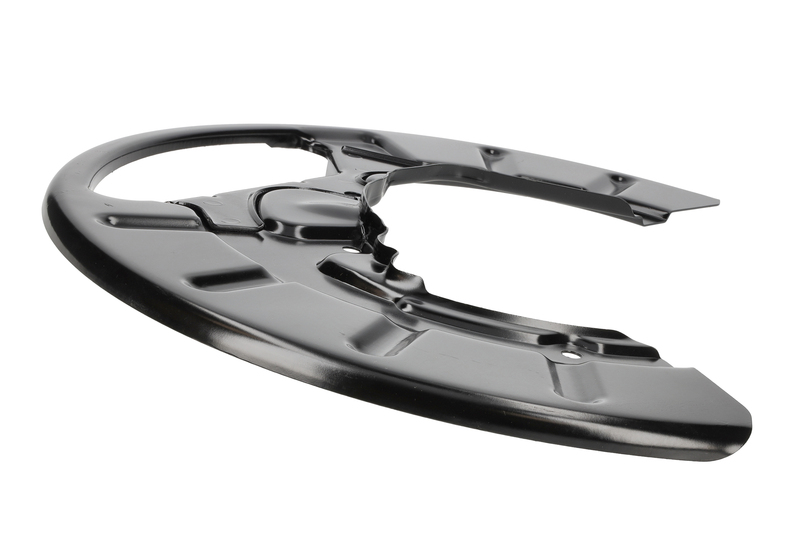

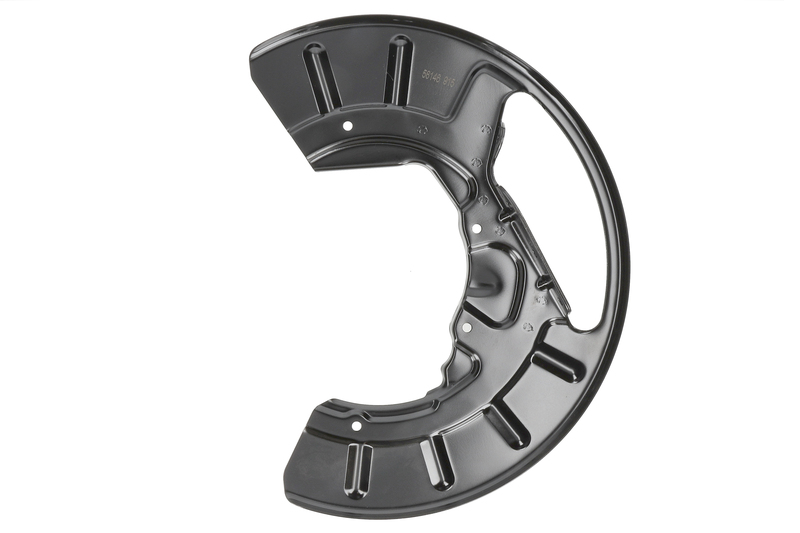

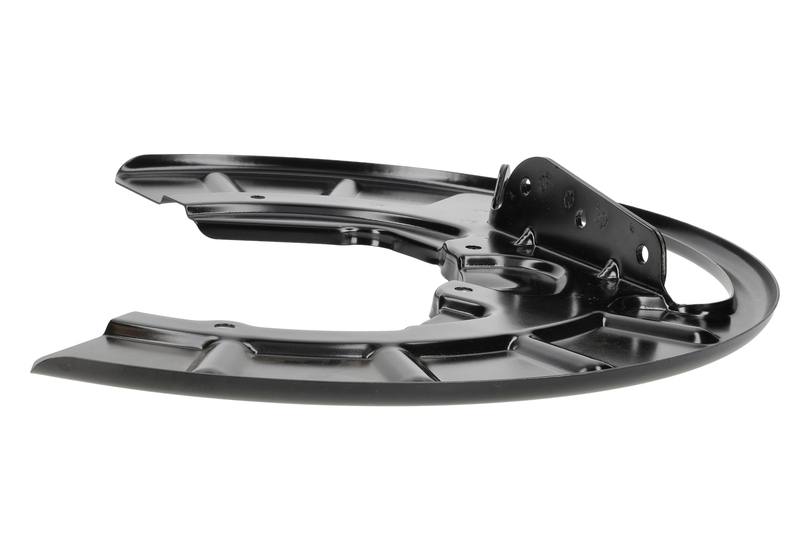

Spritzblech, Bremsscheibe
56161
| Qualität | Original AIC Quality |
| Einbauposition: | Hinterachse links |
| Material: | Aluminium |
| Innendurchmesser [mm]: | 70 mm |
| Außendurchmesser [mm]: | 355 mm |
| Oberfläche: | lackiert,KTL-beschichtet (kathodische Tauchlackierung) |
| für Bremsscheibendurchmesser [mm]: | 282,286 mm |
| Garantie: | 5 Jahre Garantie oder bis 75.000km |
| paarige Artikelnummer: | 56162 |
| VPE | 1 |
| Hersteller | Model | Motorcode | Baujahr von | Baujahr bis | K-Typ | KW |
|---|---|---|---|---|---|---|
| VW | PASSAT B6 (3C2) | CAXA | 05/2007 | 07/2010 | 27544 | 0090 |
| VW | PASSAT B6 (3C2) | BSF, B | 05/2005 | 07/2010 | 19216 | 0075 |
| VW | PASSAT B6 (3C2) | BLF | 03/2005 | 06/2008 | 18520 | 0085 |
| VW | PASSAT B6 (3C2) | BZB, C | 05/2007 | 07/2010 | 27545 | 0118 |
| VW | PASSAT B6 (3C2) | BVZ, B | 03/2005 | 07/2010 | 18521 | 0110 |
| VW | PASSAT B6 (3C2) | AXX, B | 07/2005 | 07/2010 | 19395 | 0147 |
| VW | PASSAT B6 (3C2) | BLS, B | 03/2005 | 07/2010 | 18522 | 0077 |
| VW | PASSAT B6 (3C2) | BMA, C | 03/2005 | 11/2010 | 27547 | 0100 |
| VW | PASSAT B6 (3C2) | BMP | 03/2005 | 05/2009 | 19957 | 0103 |
| VW | PASSAT B6 (3C2) | BMP | 03/2005 | 05/2009 | 19958 | 0103 |
| VW | PASSAT B6 (3C2) | BKP, C | 03/2005 | 07/2010 | 18523 | 0103 |
| VW | PASSAT B6 (3C2) | BKP, C | 03/2005 | 08/2010 | 19630 | 0103 |
| VW | PASSAT B6 (3C2) | BUZ | 08/2005 | 05/2009 | 24259 | 0120 |
| VW | PASSAT B6 (3C2) | BMR, C | 08/2005 | 07/2010 | 18671 | 0125 |
| VW | PASSAT B6 Estat | CAXA | 05/2007 | 11/2010 | 27540 | 0090 |
| VW | PASSAT ALLTRACK | CCZB | 01/2012 | 12/2014 | 29304 | 0155 |
| VW | PASSAT B6 Estat | BSF, B | 08/2005 | 11/2010 | 18730 | 0075 |
| VW | PASSAT B6 Estat | BLF | 08/2005 | 06/2008 | 18726 | 0085 |
| VW | PASSAT B6 Estat | BZB, C | 05/2007 | 10/2011 | 27541 | 0118 |
| VW | PASSAT B6 Estat | BLR, B | 08/2005 | 11/2010 | 18727 | 0110 |
| VW | PASSAT B6 Estat | BWA, A | 08/2005 | 11/2010 | 19396 | 0147 |
| VW | PASSAT B6 Estat | BLS, B | 08/2005 | 11/2010 | 18728 | 0077 |
| VW | PASSAT B6 Estat | BMA, C | 08/2005 | 11/2010 | 18732 | 0100 |
| VW | PASSAT B6 Estat | BMP | 08/2005 | 05/2009 | 19959 | 0103 |
| VW | PASSAT B6 Estat | BMP | 08/2005 | 05/2009 | 19960 | 0103 |
| VW | PASSAT B6 Estat | BKP, C | 08/2005 | 11/2010 | 18729 | 0103 |
| VW | PASSAT B6 Estat | BKP, C | 08/2005 | 11/2010 | 19632 | 0103 |
| VW | PASSAT B6 Estat | BUZ | 08/2005 | 05/2009 | 28570 | 0120 |
| VW | PASSAT B6 Estat | BMR, C | 08/2005 | 11/2010 | 19200 | 0125 |
| VW | CC B7 (358) | CZDA | 05/2015 | 12/2016 | 11519 | 0110 |
| VW | PASSAT CC B6 (3 | CKMA | 01/2011 | 01/2012 | 11258 | 0118 |
| VW | CC B7 (358) | CTHD | 11/2011 | 12/2016 | 56902 | 0118 |
| VW | PASSAT CC B6 (3 | BZB, C | 06/2008 | 01/2012 | 26607 | 0118 |
| VW | CC B7 (358) | CKMA | 11/2011 | 12/2016 | 10811 | 0118 |
| VW | PASSAT CC B6 (3 | CAWB, | 06/2008 | 01/2012 | 28284 | 0147 |
| VW | CC B7 (358) | CDAA | 11/2011 | 12/2016 | 27347 | 0118 |
| VW | PASSAT CC B6 (3 | CCZB | 11/2010 | 01/2012 | 11255 | 0155 |
| VW | CC B7 (358) | CCZB | 11/2011 | 12/2016 | 26740 | 0155 |
| VW | PASSAT CC B6 (3 | CBAA, | 06/2008 | 05/2011 | 28285 | 0100 |
| VW | PASSAT CC B6 (3 | CBAB, | 06/2008 | 01/2012 | 26609 | 0103 |
| VW | PASSAT CC B6 (3 | CBAB, | 08/2009 | 01/2012 | 31974 | 0103 |
| VW | CC B7 (358) | CFFB | 11/2011 | 12/2016 | 26752 | 0103 |
| VW | PASSAT CC B6 (3 | CBAC | 05/2009 | 11/2010 | 31972 | 0105 |
| VW | PASSAT CC B6 (3 | CBBB, | 06/2008 | 01/2012 | 28283 | 0125 |
| VW | CC B7 (358) | CUVC | 05/2015 | 12/2016 | 11519 | 0110 |
| VW | CC B7 (358) | CFGB, | 11/2011 | 12/2016 | 26732 | 0125 |
| VW | PASSAT CC B6 (3 | CBBB, | 11/2009 | 01/2012 | 32797 | 0125 |
| VW | CC B7 (358) | CFGC | 12/2012 | 12/2016 | 56901 | 0130 |
| VW | CC B7 (358) | CFGC | 12/2012 | 12/2016 | 59367 | 0130 |
| VW | CC B7 (358) | CUWA | 05/2015 | 12/2016 | 11519 | 0135 |
| VW | PASSAT B7 (362) | CAXA | 08/2010 | 12/2014 | 214 | 0090 |
| VW | PASSAT B7 (362) | CDGA | 08/2010 | 12/2014 | 315 | 0110 |
| VW | PASSAT B7 (362) | CTHD | 11/2012 | 12/2014 | 57298 | 0118 |
| VW | PASSAT B7 (362) | CKMA | 11/2010 | 12/2014 | 10577 | 0118 |
| VW | PASSAT B7 (362) | CDAA | 08/2010 | 12/2014 | 269 | 0118 |
| VW | PASSAT B7 (362) | CCZB | 11/2010 | 12/2014 | 276 | 0155 |
| VW | PASSAT B7 (362) | CAYC | 08/2010 | 12/2014 | 293 | 0077 |
| VW | PASSAT B7 (362) | CFFA | 08/2010 | 12/2014 | 11228 | 0100 |
| VW | PASSAT B7 (362) | CFFB | 08/2010 | 12/2014 | 294 | 0103 |
| VW | PASSAT B7 (362) | CFFB | 08/2010 | 12/2014 | 295 | 0103 |
| VW | PASSAT B7 (362) | CLLA, | 08/2010 | 12/2014 | 296 | 0125 |
| VW | PASSAT B7 (362) | CFGB | 08/2010 | 01/2013 | 314 | 0125 |
| VW | PASSAT B7 (362) | CFGC | 12/2012 | 12/2014 | 56872 | 0130 |
| VW | PASSAT B7 (362) | CFGC | 01/2013 | 12/2014 | 59396 | 0130 |
| VW | PASSAT B7 Estat | CAXA | 08/2010 | 12/2014 | 317 | 0090 |
| VW | PASSAT B7 Estat | CDGA | 08/2010 | 12/2014 | 361 | 0110 |
| VW | PASSAT B7 Estat | CTHD | 11/2012 | 12/2014 | 57348 | 0118 |
| VW | PASSAT B7 Estat | CKMA | 11/2010 | 12/2014 | 10586 | 0118 |
| VW | PASSAT B7 Estat | CDAA | 08/2010 | 12/2014 | 326 | 0118 |
| VW | PASSAT B7 Estat | CCZB | 11/2010 | 12/2015 | 346 | 0155 |
| VW | PASSAT B7 Estat | CAYC | 08/2010 | 12/2014 | 327 | 0077 |
| VW | PASSAT B7 Estat | CFFA | 08/2010 | 12/2014 | 11233 | 0100 |
| VW | PASSAT B7 Estat | CFFB | 08/2010 | 12/2014 | 356 | 0103 |
| VW | PASSAT B7 Estat | CFFB | 08/2010 | 12/2014 | 357 | 0103 |
| VW | PASSAT B7 Estat | CFGB, | 08/2010 | 12/2014 | 358 | 0125 |
| VW | PASSAT B7 Estat | CFGB | 08/2010 | 01/2013 | 359 | 0125 |
| VW | PASSAT B7 Estat | CFGC | 12/2012 | 12/2014 | 56871 | 0130 |
| VW | PASSAT B7 Estat | CFGC | 01/2013 | 12/2014 | 59387 | 0130 |
| VW | SHARAN (7N1, 7N | CAVA, | 05/2010 | 11/2015 | 33434 | 0110 |
| VW | SHARAN (7N1, 7N | CZDA | 05/2015 | 11/2022 | 11520 | 0110 |
| VW | SHARAN (7N1, 7N | CCZA | 12/2010 | 11/2015 | 6021 | 0147 |
| VW | SHARAN (7N1, 7N | DEDA | 05/2015 | 12/2020 | 11520 | 0162 |
| VW | SHARAN (7N1, 7N | DFLD, | 05/2011 | 07/2019 | 12089 | 0085 |
| VW | SHARAN (7N1, 7N | CFFA | 05/2010 | 11/2015 | 34975 | 0100 |
| VW | SHARAN (7N1, 7N | CFFB | 05/2010 | 11/2015 | 33435 | 0103 |
| VW | SHARAN (7N1, 7N | CFFB | 05/2011 | 11/2015 | 10876 | 0103 |
| VW | SHARAN (7N1, 7N | DFLA, | 05/2015 | 10/2020 | 11520 | 0110 |
| VW | SHARAN (7N1, 7N | CFGB | 05/2010 | 01/2013 | 33675 | 0125 |
| VW | SHARAN (7N1, 7N | CFGC | 01/2013 | 06/2022 | 59444 | 0130 |
| VW | SHARAN (7N1, 7N | DFMA, | 05/2015 | 07/2018 | 11520 | 0135 |
| VW | TIGUAN (5N_) | CAXA | 08/2010 | 07/2018 | 33673 | 0090 |
| VW | TIGUAN (5N_) | CZDB | 05/2015 | 07/2018 | 11333 | 0092 |
| VW | TIGUAN (5N_) | BWK, C | 05/2008 | 07/2018 | 29996 | 0110 |
| VW | TIGUAN (5N_) | BWK, C | 09/2007 | 07/2018 | 23182 | 0110 |
| VW | TIGUAN (5N_) | CAVD, | 05/2011 | 07/2018 | 10929 | 0118 |
| VW | TIGUAN (5N_) | CAVD, | 05/2011 | 07/2018 | 10932 | 0118 |
| VW | TIGUAN (5N_) | CZDA | 05/2015 | 07/2018 | 11613 | 0110 |
| VW | TIGUAN (5N_) | CFFD | 05/2010 | 07/2018 | 33674 | 0081 |
| VW | TIGUAN (5N_) | CBAB, | 03/2008 | 07/2018 | 29997 | 0103 |
| VW | TIGUAN (5N_) | CBAB, | 09/2007 | 07/2018 | 23178 | 0103 |
| VW | TIGUAN (5N_) | CUVC | 05/2015 | 07/2018 | 11295 | 0110 |
| VW | EOS (1F7, 1F8) | CAXA | 11/2007 | 08/2015 | 31096 | 0090 |
| VW | EOS (1F7, 1F8) | CAVD, | 05/2008 | 08/2015 | 31100 | 0118 |
| VW | EOS (1F7, 1F8) | BLF | 06/2006 | 05/2008 | 18971 | 0085 |
| VW | EOS (1F7, 1F8) | BVY, B | 03/2006 | 05/2008 | 18974 | 0110 |
| VW | EOS (1F7, 1F8) | BWA, B | 03/2006 | 08/2015 | 18976 | 0147 |
| VW | EOS (1F7, 1F8) | CCZB | 11/2009 | 08/2015 | 32160 | 0155 |
| VW | EOS (1F7, 1F8) | BUB, C | 06/2006 | 05/2009 | 18985 | 0184 |
| VW | EOS (1F7, 1F8) | CDVA | 05/2009 | 11/2010 | 31105 | 0191 |
| VW | EOS (1F7, 1F8) | BMM | 06/2006 | 05/2008 | 18989 | 0103 |
| VW | EOS (1F7, 1F8) | CBAB, | 05/2008 | 08/2015 | 33645 | 0103 |
| VW | CC B7 (358) | 11/2011 | 12/2016 | 56900 | 0100 | |
| VW | SHARAN Kasten/G | 05/2010 | 11/2015 | 14300 | 0110 | |
| VW | SHARAN Kasten/G | 12/2010 | 11/2015 | 14300 | 0147 | |
| VW | SHARAN Kasten/G | 05/2011 | 11/2015 | 14300 | 0085 | |
| VW | SHARAN Kasten/G | 05/2010 | 05/2011 | 14300 | 0100 | |
| VW | SHARAN Kasten/G | 05/2010 | 11/2015 | 14300 | 0103 | |
| VW | SHARAN Kasten/G | 08/2010 | 01/2013 | 14300 | 0125 | |
| VW | TIGUAN VAN (5N_ | 08/2010 | 05/2011 | 14301 | 0090 | |
| VW | TIGUAN VAN (5N_ | 05/2008 | 05/2010 | 14302 | 0110 | |
| VW | TIGUAN VAN (5N_ | 09/2012 | 07/2018 | 14302 | 0118 | |
| VW | TIGUAN VAN (5N_ | 05/2010 | 07/2011 | 14304 | 0081 | |
| VW | TIGUAN VAN (5N_ | 11/2009 | 07/2018 | 14304 | 0103 | |
| VW | PASSAT B7 Kaste | 08/2010 | 12/2014 | 15298 | 0112 | |
| VW | PASSAT B7 Kaste | 08/2010 | 12/2014 | 15299 | 0100 | |
| VW | PASSAT B7 Kaste | 08/2010 | 12/2014 | 15299 | 0130 | |
| AUDI | Q3 (8UB, 8UG) | CZDB | 07/2016 | 10/2018 | 12059 | 0092 |
| AUDI | Q3 (8UB, 8UG) | CHPB, | 10/2013 | 10/2018 | 10003 | 0110 |
| AUDI | Q3 (8UB, 8UG) | CULB | 05/2015 | 10/2018 | 11334 | 0132 |
| AUDI | Q3 (8UB, 8UG) | CULB | 11/2014 | 10/2018 | 11061 | 0132 |
| AUDI | Q3 (8UB, 8UG) | 11/2014 | 10/2018 | 10942 | 0162 | |
| AUDI | Q3 (8UB, 8UG) | CUVD | 03/2015 | 10/2018 | 11226 | 0088 |
| AUDI | Q3 (8UB, 8UG) | CFFA | 09/2011 | 10/2018 | 12035 | 0100 |
| AUDI | Q3 (8UB, 8UG) | CFFB, | 09/2011 | 10/2018 | 11793 | 0103 |
| AUDI | Q3 (8UB, 8UG) | CFFB | 01/2012 | 10/2018 | 14761 | 0103 |
| AUDI | Q3 (8UB, 8UG) | DBBA, | 11/2014 | 10/2018 | 10942 | 0110 |
| AUDI | Q3 (8UB, 8UG) | DFTA, | 11/2014 | 10/2018 | 10942 | 0110 |
| AUDI | Q3 (8UB, 8UG) | CFGC | 06/2011 | 04/2015 | 59273 | 0130 |
| AUDI | Q3 (8UB, 8UG) | CFGC, | 06/2011 | 10/2018 | 11791 | 0130 |
| AUDI | Q3 (8UB, 8UG) | CUWA | 05/2015 | 10/2018 | 11334 | 0135 |
| AUDI | Q3 (8UB, 8UG) | CYLA, | 11/2014 | 10/2018 | 10942 | 0135 |
| SEAT | ALHAMBRA (710, | CAVA, | 06/2010 | 04/2015 | 519 | 0110 |
| SEAT | ALHAMBRA (710, | CCZA | 11/2010 | 05/2012 | 6029 | 0147 |
| SEAT | ALHAMBRA (710, | CUVA, | 05/2011 | 12/2022 | 10615 | 0085 |
| SEAT | ALHAMBRA (710, | CFFA | 06/2010 | 05/2011 | 10625 | 0100 |
| SEAT | ALHAMBRA (710, | CFFB | 06/2010 | 04/2015 | 520 | 0103 |
| SEAT | ALHAMBRA (710, | CFFB | 05/2011 | 04/2015 | 10621 | 0103 |
| SEAT | ALHAMBRA (710, | CFGB | 06/2010 | 02/2013 | 521 | 0125 |
| SEAT | ALHAMBRA (710, | CFGC | 11/2012 | 12/2022 | 58359 | 0130 |
| SEAT | ALHAMBRA (710, | 11/2012 | 04/2015 | 59056 | 0118 |
| Hersteller | Vergleichsnummer |
|---|---|
| SEAT | 3C0 615 611H |
| SKODA | 3C0 615 611H |
| VW | 3C0 615 611H |
| VAG | 3C0 615 611H |
| AUDI | 3C0 615 611H |
| SEAT | 5N0 615 611C |
| SKODA | 5N0 615 611C |
| VW | 5N0 615 611C |
| VAG | 5N0 615 611C |
| AUDI | 5N0 615 611C |
| SEAT | 5N0 615 611 |
| SKODA | 5N0 615 611 |
| VW | 5N0 615 611 |
| VAG | 5N0 615 611 |
| AUDI | 5N0 615 611 |
