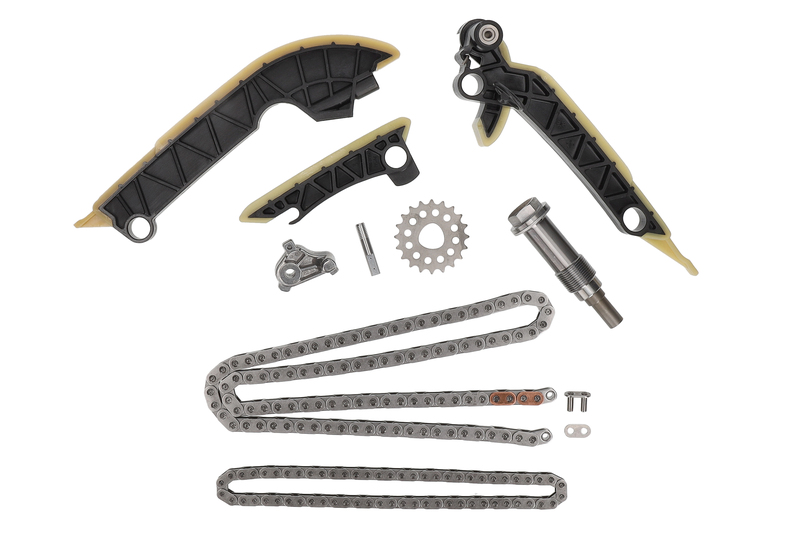

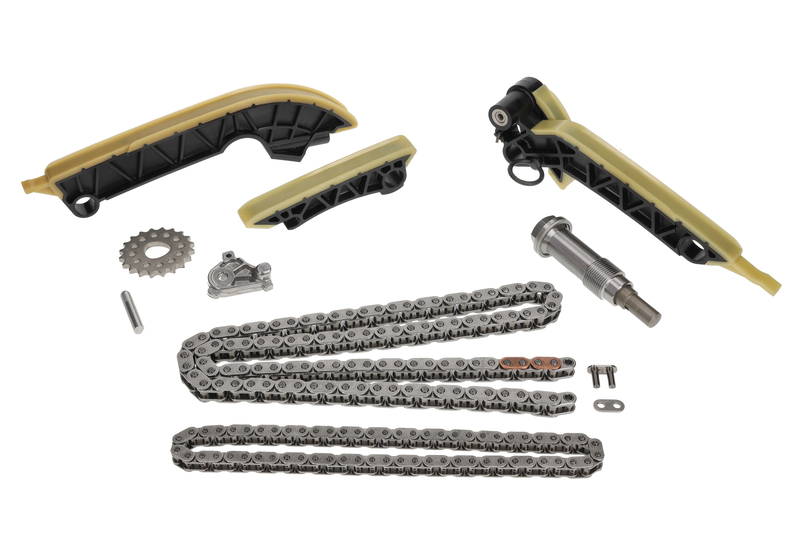

Timing Chain Kit
73594Set
| Quality | iwis original OEM quality, Made in Germany |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,with camshaft adjuster,with cover for camshaft,with crankshaft seal,with cylinder head cover gasket set,Check and replace gears if necessary |
| Number of chain links: | 142,106 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Open chain,with chain lock |
| Number of chains: | 2 |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| MAYBACH | / | / | 16658 | |||
| MAYBACH | / | / | 17187 | |||
| MAYBACH | / | / | 19789 | |||
| MAYBACH | / | / | 19790 | |||
| MAYBACH | / | / | 16715 | |||
| MAYBACH | / | / | 16714 | |||
| MAYBACH | / | / | 16719 | |||
| MAYBACH | / | / | 16718 | |||
| MAYBACH | / | / | 16717 | |||
| MAYBACH | / | / | 16716 | |||
| MAYBACH | / | / | 23157 | |||
| MAYBACH | / | / | 23158 | |||
| MAYBACH | / | / | 22461 | |||
| MAYBACH | / | / | 23400 | |||
| MAYBACH | / | / | 22460 | |||
| MAYBACH | / | / | 23399 | |||
| MAYBACH | / | / | 17884 | |||
| MAYBACH | / | / | 17862 | |||
| MAYBACH | / | / | 17861 | |||
| MAYBACH | / | / | 26663 | |||
| MAYBACH | / | / | 26564 | |||
| MAYBACH | / | / | 26565 | |||
| MAYBACH | / | / | 30368 | |||
| MAYBACH | / | / | 32869 | |||
| MAYBACH | / | / | 137021 | |||
| MAYBACH | / | / | 32867 | |||
| MAYBACH | / | / | 32872 | |||
| MAYBACH | / | / | 32876 | |||
| MAYBACH | / | / | 32875 | |||
| MAYBACH | / | / | 32868 | |||
| MAYBACH | / | / | 57362 | |||
| MAYBACH | / | / | 32866 | |||
| MAYBACH | / | / | 32865 | |||
| MAYBACH | / | / | 32860 | |||
| MAYBACH | / | / | 30372 | |||
| MAYBACH | / | / | 31155 | |||
| MAYBACH | / | / | 17964 | |||
| MAYBACH | / | / | 57363 | |||
| MAYBACH | / | / | 57358 | |||
| MAYBACH | / | / | 9945 | |||
| MAYBACH | / | / | 59457 | |||
| MAYBACH | / | / | 18882 | |||
| MERCEDES | E-KLASSE (W211) | M 271.941 | 11/2002 | 12/2008 | 17128 | 0120 |
| MERCEDES | E-KLASSE T-Model (S211) | M 271.941 | 03/2003 | 07/2009 | 17164 | 0120 |
| MERCEDES | C-KLASSE (W203) | M 271.942 | 07/2003 | 02/2007 | 17376 | 0125 |
| MERCEDES | C-KLASSE T-Model (S203) | M 271.942 | 07/2003 | 08/2007 | 17377 | 0125 |
| MERCEDES | C-CLASS Sportscoupe (CL203) | M 271.942 | 03/2003 | 05/2008 | 17131 | 0125 |
| MERCEDES | C-CLASS Sportscoupe (CL203) | M 271.948 | 05/2002 | 05/2008 | 16720 | 0141 |
| MERCEDES | SPRINTER 5-t Kasten (B906) | 03/2009 | 12/2018 | 135597 | 0115 | |
| MERCEDES | SPRINTER 5-t Kasten (B906) | 03/2009 | 12/2018 | 145307 | 0115 | |
| MERCEDES | CLK (C209) | M 271.942 | 07/2003 | 05/2009 | 16659 | 0125 |
| Manufacturer | Comparison number |
|---|---|
| MERCE | 000 993 2076 |
| MERCE | 000 993 2176 |
| MERCE | 000 997 6220 |
| MERCE | 004 997 2494 |
| MERCE | 023 997 8447 |
| MERCE | 271 016 0121 |
| MERCE | 271 016 0721 |
| MERCE | 271 016 0921 |
| MERCE | 271 050 0171 |
| MERCE | 271 050 0311 |
| MERCE | 271 050 0411 |
| MERCE | 271 050 0611 |
| MERCE | 271 050 0800 |
| MERCE | 271 050 0900 |
| MERCE | 271 050 1247 |
| MERCE | 271 050 1447 |
| MERCE | 271 052 0416 |
| MERCE | 271 052 0640 |
| MERCE | 271 052 1016 |
| MERCE | 271 052 1116 |
| MERCE | A000 993 2076 |
| MERCE | A000 993 2176 |
| MERCE | A000 997 6220 |
| MERCE | A004 997 2494 |
| MERCE | A023 997 8447 |
| MERCE | A271 016 0121 |
| MERCE | A271 016 0721 |
| MERCE | A271 016 0921 |
| MERCE | A271 050 0171 |
| MERCE | A271 050 0311 |
| MERCE | A271 050 0411 |
| MERCE | A271 050 0611 |
| MERCE | A271 050 0800 |
| MERCE | A271 050 0900 |
| MERCE | A271 050 1247 |
| MERCE | A271 050 1447 |
| MERCE | A271 052 0416 |
| MERCE | A271 052 0640 |
| MERCE | A271 052 1016 |
| MERCE | A271 052 1116 |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59175 | 1 | |
| Guides, timing chain | 59236 | 1 | |
| Guides, timing chain | 59237 | 1 | |
| Guides, timing chain | 59238 | 1 | |
| Tensioner, timing chain | 59278 | 1 | |
| Holder, timing chain tensioner | 59299 | 1 | |
| Locking Cover, camshaft | 59330 | 1 | |
| Timing Chain | 59179 | 1 | |
| Shaft Seal, crankshaft | 60294 | 1 | |
| Control Valve, camshaft adjustment | 60370 | 2 | |
| Gasket Set, cylinder head cover | 60371 | 1 | |
| Seal, oil filler cap | 60372 | 1 | |
| Camshaft Adjuster | 60399 | 271 050 0800 | 1 |
| Camshaft Adjuster | 60400 | 271 050 0900 | 1 |
