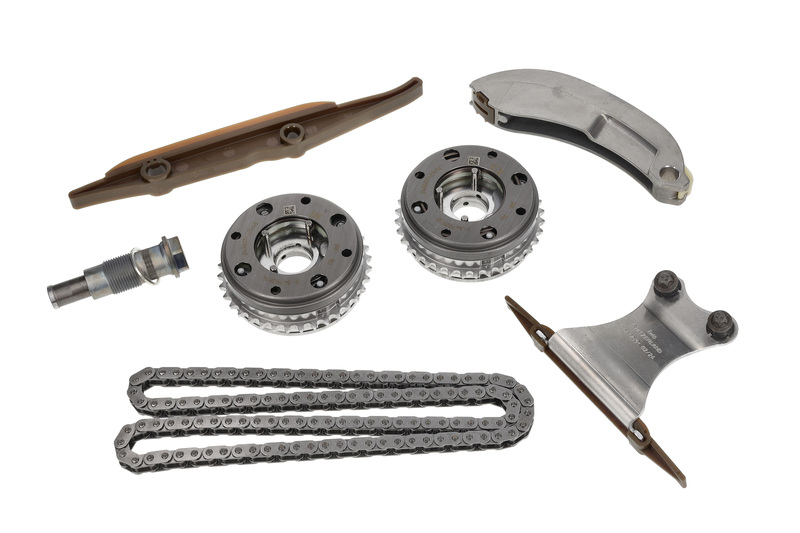

Timing Chain Kit
70011Set
| Quality | iwis or |
| Supplementary Article/Supplementary Info: | with slide rails,with chain tensioner,Check and replace gears if necessary |
| Number of chain links: | 98 |
| Guarantee: | 5 years guarantee or up to 100,000 km |
| Chain Type: | Simplex,Closed chain |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| SKODA | SUPERB II (3T4) | CDVA | 11/2008 | 05/2015 | 28258 | 0191 |
| SKODA | SUPERB II Kombi | CDVA | 10/2009 | 05/2015 | 32786 | 0191 |
| VW | PASSAT B5.5 (3B | AZX | 11/2000 | 05/2005 | 15419 | 0125 |
| VW | PASSAT B5.5 (3B | AZX | 11/2000 | 05/2005 | 15784 | 0125 |
| VW | PASSAT B5.5 Var | AZX | 11/2000 | 05/2005 | 15423 | 0125 |
| VW | PASSAT B5.5 Var | AZX | 11/2000 | 05/2005 | 15788 | 0125 |
| VW | PASSAT B6 (3C2) | AXZ | 11/2005 | 07/2010 | 19485 | 0184 |
| VW | PASSAT B6 (3C2) | BWS | 04/2007 | 07/2010 | 22531 | 0220 |
| VW | PASSAT B6 Varia | AXZ | 11/2005 | 11/2010 | 19486 | 0184 |
| VW | PASSAT B6 Varia | BWS | 04/2007 | 11/2010 | 22532 | 0220 |
| VW | PASSAT CC B6 (3 | BWS | 02/2008 | 12/2011 | 26608 | 0220 |
| VW | CC B7 (358) | BWS | 11/2011 | 12/2016 | 26739 | 0220 |
| VW | PASSAT B7 (362) | BWS | 01/2011 | 12/2014 | 7027 | 0220 |
| VW | PASSAT B7 Varia | BWS | 01/2011 | 12/2014 | 7033 | 0220 |
| VW | PHAETON (3D1, 3 | BKL, A | 04/2002 | 05/2005 | 16693 | 0177 |
| VW | PHAETON (3D1, 3 | BRK, B | 02/2004 | 11/2008 | 18394 | 0177 |
| VW | PHAETON (3D1, 3 | CHNA, | 11/2008 | 03/2016 | 31101 | 0206 |
| VW | SHARAN (7M8, 7M | AYL | 04/2000 | 03/2010 | 14854 | 0150 |
| VW | SHARAN (7M8, 7M | AYL | 04/2000 | 03/2010 | 14896 | 0150 |
| VW | TOUAREG (7LA, 7 | AZZ, B | 10/2002 | 11/2006 | 16819 | 0162 |
| VW | TOUAREG (7LA, 7 | BMV | 11/2004 | 11/2006 | 18427 | 0177 |
| VW | TOUAREG (7LA, 7 | BHL, B | 10/2005 | 05/2010 | 19455 | 0206 |
| VW | TOUAREG (7P5, 7 | CGRA | 04/2010 | 03/2018 | 33306 | 0206 |
| VW | MULTIVAN T5 (7H | BKK, C | 02/2004 | 12/2009 | 18189 | 0173 |
| VW | MULTIVAN T5 (7H | BKK, C | 07/2004 | 12/2009 | 18190 | 0173 |
| VW | EOS (1F7, 1F8) | BUB, C | 06/2006 | 05/2009 | 18985 | 0184 |
| VW | EOS (1F7, 1F8) | CDVA | 05/2009 | 11/2010 | 31105 | 0191 |
| VW | TRANSPORTER T5 | BKK, C | 02/2004 | 11/2009 | 17771 | 0173 |
| VW | TRANSPORTER T5 | BKK, C | 11/2003 | 12/2009 | 20661 | 0173 |
| VW | TRANSPORTER T5 | BKK, C | 02/2004 | 11/2009 | 17772 | 0173 |
| VW | TRANSPORTER T5 | BKK, C | 11/2003 | 11/2009 | 20485 | 0173 |
| VW | TRANSPORTER T5 | BKK | 08/2003 | 11/2009 | 17773 | 0173 |
| VW | TOUAREG (7P5, 7 | 08/2010 | 03/2018 | 8359 | 0183 | |
| VW | GOLF IV (1J1) | AQN | 10/2000 | 06/2005 | 15540 | 0125 |
| VW | GOLF IV (1J1) | AQN | 10/2000 | 06/2005 | 15541 | 0125 |
| VW | GOLF IV (1J1) | BDE, A | 03/1999 | 06/2005 | 10944 | 0150 |
| VW | GOLF IV (1J1) | BFH, B | 09/2002 | 06/2005 | 16846 | 0177 |
| VW | GOLF IV Variant | AQN | 10/2000 | 06/2006 | 17478 | 0125 |
| VW | GOLF IV Variant | AQN | 10/2000 | 06/2006 | 17479 | 0125 |
| VW | GOLF IV Variant | AUE, B | 05/1999 | 06/2006 | 14566 | 0150 |
| VW | GOLF V (1K1) | BUB, C | 11/2005 | 11/2008 | 18921 | 0184 |
| VW | BORA I (1J2) | AQN | 10/2000 | 05/2005 | 15546 | 0125 |
| VW | BORA I (1J2) | AQN | 10/2000 | 05/2005 | 15547 | 0125 |
| VW | BORA Variant (1 | AQN | 10/2000 | 05/2005 | 15548 | 0125 |
| VW | BORA Variant (1 | AQN | 10/2000 | 05/2005 | 15549 | 0125 |
| VW | NEW BEETLE (9C1 | AQN | 10/2000 | 09/2010 | 15629 | 0125 |
| AUDI | A3 Sportback (8 | BMJ, B | 09/2004 | 05/2009 | 18070 | 0184 |
| AUDI | Q7 (4LB) | BHK | 08/2006 | 05/2010 | 19803 | 0206 |
| AUDI | TT (8N3) | BHE, B | 07/2003 | 06/2006 | 17144 | 0184 |
| AUDI | TT Roadster (8N | BHE, B | 07/2003 | 06/2006 | 17472 | 0184 |
| AUDI | TT (8J3) | BUB | 08/2006 | 06/2010 | 19454 | 0184 |
| AUDI | TT Roadster (8J | BUB | 03/2007 | 06/2010 | 19807 | 0184 |
| AUDI | A3 (8P1) | BMJ, B | 07/2003 | 05/2009 | 17577 | 0184 |
| Manufacturer | Comparison number |
|---|---|
| SKODA | 03H 109 503 |
| VW | 03H 109 503 |
| VAG | 03H 109 503 |
| AUDI | 03H 109 503 |
| SKODA | 03H 109 507 |
| VW | 03H 109 507 |
| VAG | 03H 109 507 |
| AUDI | 03H 109 507 |
| SKODA | 03H 109 509A |
| VW | 03H 109 509A |
| VAG | 03H 109 509A |
| AUDI | 03H 109 509A |
| SKODA | 03H 109 509 |
| VW | 03H 109 509 |
| VAG | 03H 109 509 |
| AUDI | 03H 109 509 |
| SKODA | 03H 109 513B |
| VW | 03H 109 513B |
| VAG | 03H 109 513B |
| AUDI | 03H 109 513B |
| SKODA | 066 109 503B |
| VW | 066 109 503B |
| VAG | 066 109 503B |
| AUDI | 066 109 503B |
| SKODA | 066 109 503C |
| VW | 066 109 503C |
| VAG | 066 109 503C |
| AUDI | 066 109 503C |
| SKODA | 066 109 507A |
| VW | 066 109 507A |
| VAG | 066 109 507A |
| AUDI | 066 109 507A |
| SKODA | 066 109 507D |
| VW | 066 109 507D |
| VAG | 066 109 507D |
| AUDI | 066 109 507D |
| SKODA | 066 109 514A |
| VW | 066 109 514A |
| VAG | 066 109 514A |
| AUDI | 066 109 514A |
| Description | Article number | OE comparison number | Amount |
|---|---|---|---|
| Timing Chain | 59965 | 1 | |
| Guides, timing chain | 59995 | 1 | |
| Guides, timing chain | 59999 | 1 | |
| Guides, timing chain | 03H 109 509 | 1 | |
| Tensioner, timing chain | 60168 | 1 |
